Turboo Latest Turnstile High Secured Access Control System Single Full Height Turnstile
60N hydraulic shock absorber
The shock absorption effect is remarkable. The hydraulic shock absorber can effectively reduce the impact or vibration of objects.
By converting the impact energy into heat energy, it can reduce the vibration and impact of the mechanical system and greatly reduce the operating noise.

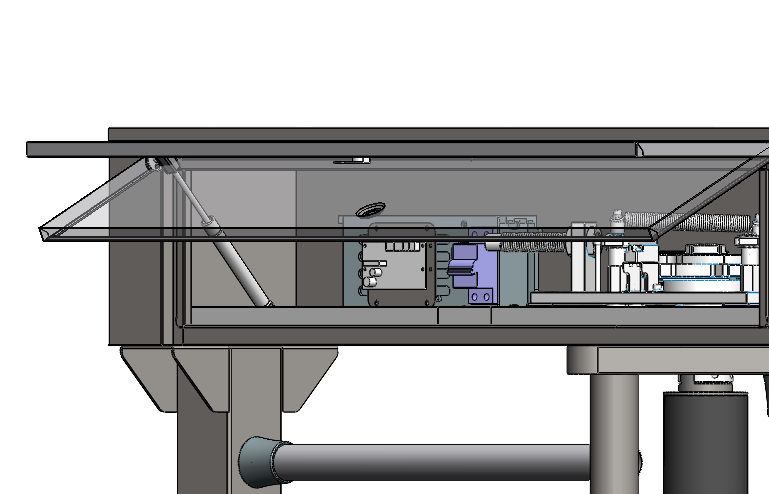

Upgraded to buffer maintenance door
Silent door opening and closing, buffered door opening
Product Descriptions

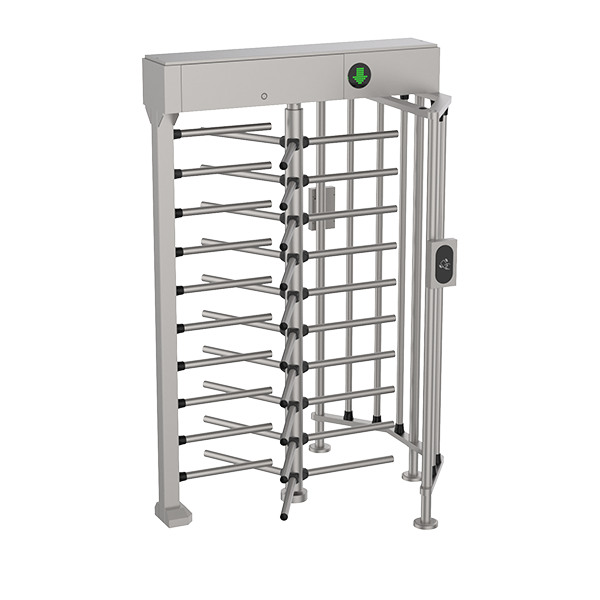

Brief introduction
The full height turnstile is a kind of access control equipment designed for places with high class security requirements. It is easy to combine IC access control, ID access control, code reader, fingerprint, face recognition and other identification devices. It realizes the intelligent and efficient management of passage. The turnstile is the best choice for access control of modern building.
The main body we use 1.2mm thickness SUS304, which is rust-proof, wear-resistant, high temperature and corrosion-resistant. We use 1.0mm φ38+2.8mmφ89 thickened 304 stainless steel pipe, which makes the turnstiles more stable and better anti-violence and high security features.
The latest full height turnstile with assembling structure, which can reduce 70% capacity, so that it can help customers to save shipping cost accordingly.
We already applied for the invention patent certificate of the latest full height turnstile self-insertion straight pole structure.
This series are fully applicable to places with a large flow of people and high security requirements places, such as school, hospital, factory, construction site, park, housing estate, prison, stadium, government agency and other places.
Moreover, it’s optional to upgrade to full automatic full height turnstile with motor drive.
Function Features
◀Damper buffer device
◀Standard signal input port, can be connected with most of the access control board, fingerprint device and scanner other equipment
◀The turnstile has automatic reset function, if people swipe the authorized card, but don’t pass through within the settled time, it need to swipe card again for entry
◀Card-reading Recording function
◀Automatic opening after emergency fire signal input
◀Anti following : prevent illegal passing
◀High light LED indicator, displaying passing status
◀Normal open can be also controlled via external button or manual key unlock
◀The turnstile will be automatically opened or blocked when power failure and the modes are adjustable
Product Descriptions
Intelligent control
Dynamic arrows guide passage
Dry contact gate opening
Support fire signal input
Sound and light alarm
Memory mode
RS485 communication
Door closing delay adjustable
Power-off normally open/power-off blocked
Support secondary development
Restore to factory settings
·Molding: Die-cast steel/aluminum alloy, special spraying treatment
Anti-corrosion, anti-oxidation, more durable
·Anti-return structure
6-angle/4-angle stop wheel design
When the turnstile rotates more than 66°/52°, the corresponding direction stop block will automatically fall down to prevent the bars from rotating back.
Super hardness
304 material, quenched and heat treated to increase hardness, greatly extending service life.
·Applications: Government building, Stadium, Prison, Factory, Construction Site, Community, School, Hospital, Park, etc
·Long life time: Measured 10 million times
Product Dimensions
Project Cases
Full height turnstile installed at the entrance and exit of government building in China
Product Parameters
| Model NO. | GM537 |
| Size | 1400x1300x2230mm |
| Material | 1.2mm +1.0mm 304 stainless steel |
| Pass Width | 600mm |
| Passing Speed | 30-45 person/min |
| Power Supply | 24V 150W |
| Input Voltage | 100V~240V |
| Communication Interface | RS485, Dry contact |
| Reliability of the mechanism | 5 million, no-fault |
| Machine core | Full height turnstile machine core |
| PCB Board | Full height turnstile drive PCB board |
| Working Environment | ≦90%, No condensation |
| User Environment | Indoor and outdoor |
| Applications | School, hospital, factory, construction site, park, housing estate, prison, stadium, government agency, etc |
| Package Details | Packed into wooden cases, 2070x780x542mm, 150kg |
-
