Access Control System Glass Door Automatic Full Height Flap Turnstile
About Us
Our main market share are contributed by overseas where are located in Southeast Asia, Middle East, Europe, America etc. The buyers come from more than 130 countries like Korea, Singapore, Malaysia, Indonesia, Philippines, Thailand, Vietnam, India, New Zealand, Pakistan, Saudi Arabia, U.A.E, Romania, Mexico, Canada, U.S.A., Brazil, Egypt, Malta, Australia, Italy, Costa Rica, Nigeria, England, Kenya, Bulgaria, Iran, Iraq, Lebanon, Hungary, Uruguay, Argentina, etc. Moreover, we take charge of very good market share in domestic too. With its stable and high quality products as well as timely and excellent services, TURBOO has gained very good reputation in the industry and trust among clients and partners.
Product Descriptions
Brief introduction

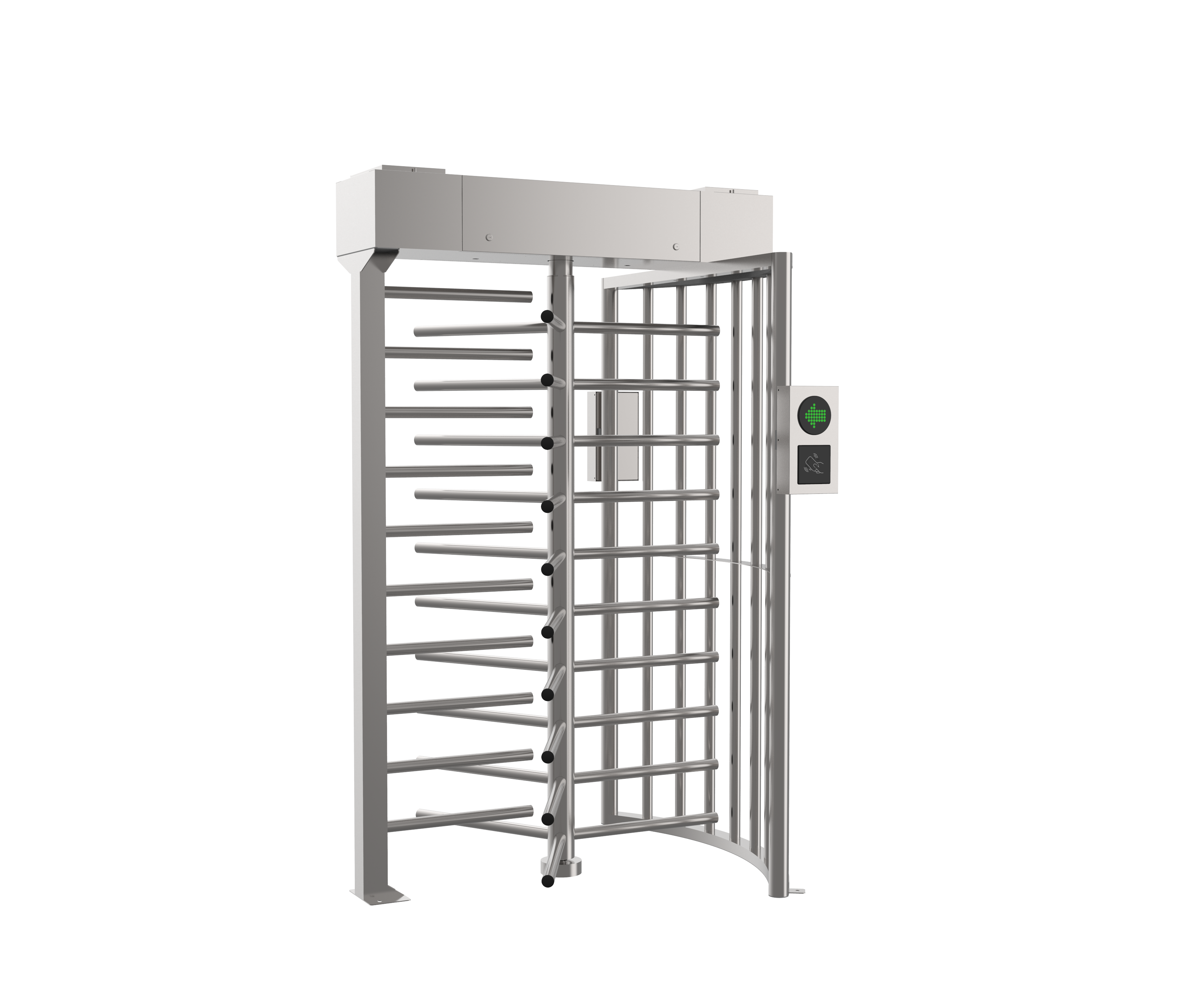

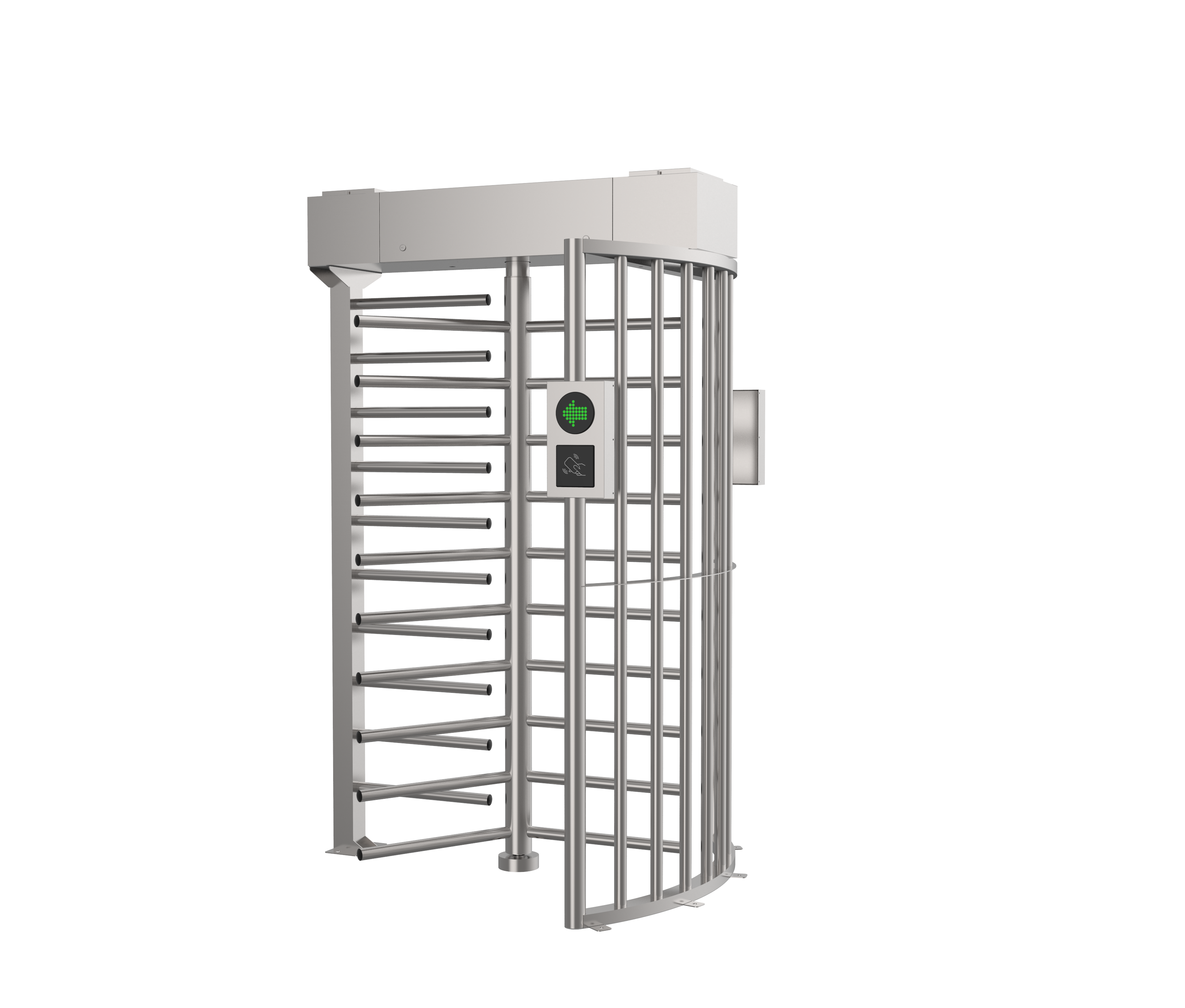

The full height turnstile is a kind of access control equipment designed for places with high class security requirements. It is easy to combine IC access control, ID access control, code reader, fingerprint, face recognition and other identification devices. It realizes the intelligent and efficient management of passage. The turnstile is the best choice for access control of modern building.
Full height turnstile series are fully applicable to places with a large flow of people and high security requirementsplaces, such as factory, construction site, school, hospital, park, housing estate, prison, stadium, government agency and other places.
Upgrade to full automatic full height turnstile is optional.
Function Features
◀Damper buffer device
◀Standard signal input port, can be connected with most of the access control board, fingerprint device and scanner other equipment;
◀The turnstile has automatic reset function, if people swipe the authorized card, but don’t pass through within the settled time, it need to swipe card again for entry;
◀Card-reading Recording function
◀Automatic opening after emergency fire signal input
◀Anti following : prevent illegal passing
◀High light LED indicator, displaying passing status.
◀Normal open can be also controlled via external button or manual key unlock
◀Gate will automatically open when power failure (connect with 24V backup battery or supercapacitor)
Product Descriptions
Simple Full height turnstile drive board
Features:
1. Stability: mature circuit design scheme, suitable for various occasions.
2. Fast wiring: The interface adopts plug-in type, which saves production man-hours, which can save man-hours 15 minutes/set.
3. Fire interface: fire-fighting signal is received and the lever is triggered.
4. Indicator light: it can be connected to the dynamic led light and can also be expanded to the square led indicator.
5. Abundant functions: through dialing to set the travel time, restore factory settings and other functions to meet various needs.
·Molding: Die-cast aluminum, special spraying treatment
·Anti-submarine return: 6pcs gears design, unable to return after 60°rotation
·Long life time: Measured 10 million times
·Disadvantages: The pass width is 550mm only, can’t be customized. It’s not easy for pedestrians with large luggage or trolleys to pass.
·Applications: Stadium, Prison, Factory, Construction Site, Community, School, Hospital, Park, etc
Product Dimensions
Product Dimensions
Full height turnstile install in a construction site in Singapore
Product Parameters
| Model NO. | G5386-1 |
| Size | 1400x1200x2250mm |
| Material | 1.2mm +1.0mm 304 stainless steel |
| Pass Width | ≦550mm |
| Passing Speed | 25-30 person/min |
| Working Voltage | DC 24V |
| Input Voltage | 100V~240V |
| Communication Interface | Dry contact |
| Opening response time | ≦0.2s |
| Machine core | 120 Degree Full height turnstile Machine core |
| PCB Board | Simple Full height turnstile drive PCB board |
| Working Temperature | -15 ℃ - 55 ℃ |
| User Environment | Indoor and outdoor |
| Applications | Factory, construction site, school, hospital, park, prison, etc |
| Package Details | Packed into wooden cases, 2130x1430x1100mm, 110kg |
-
